Desiccant packaging for the chemical industry - Delfin Pneumatic Conveyors
CUSTOMER NEEDS

DESICCANT PACKAGING MACHINE FEEDING

Packaging is the final phase of the production process and usually involves a large number of people: low noise levels are therefore essential for a comfortable working environment.

Delfin pneumatic conveyors are ideal for feeding packaging machines in the chemical industry, precisely because they are designed to ensure low noise levels. They also ensure employee safety by eliminating exposure to dust particles during the packaging process.

CASE STUDIES

PNEUMATIC CONVEYOR FOR
DESICCANT
PACKAGING

The customer wanted to avoid any contact with the irritant and abrasive product. This product is initially placed in airtight containers.

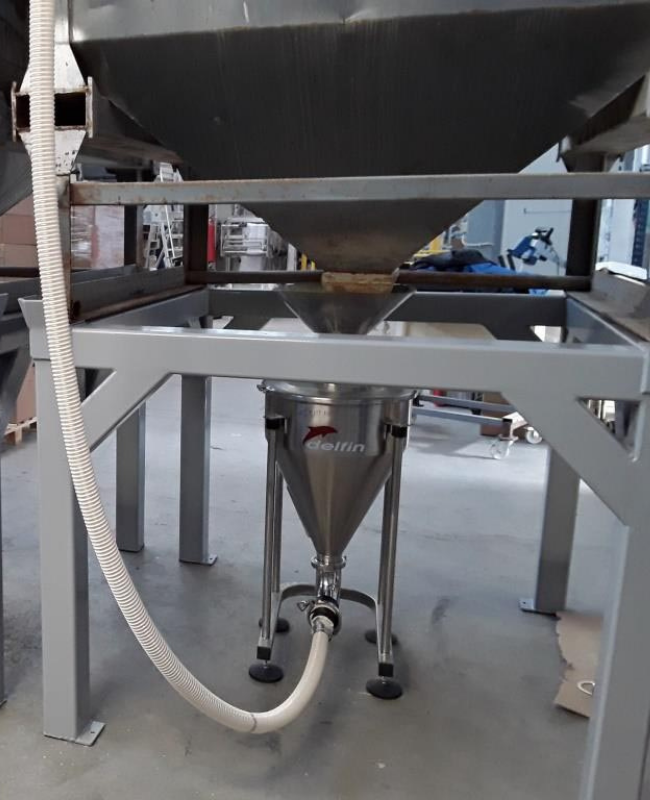

With the new Delfin system, the process becomes automated: The loading and transport of products (additive and chloride) from the hoppers to the packaging machine is carried out through two completely closed systems, avoiding risks for the operator and reducing production times.
Thanks to two conveyors, one for additives and one for chloride, the ingredients are inserted into the packaging machine, which mixes them and then packages the final product. This system makesthe workplace safer and cleaner.


FEATURES

  • Machine completely powered by compressed air (ATEX zone 22 certifiable)
  • Reaches a high vacuum level (800 mbar) generated by a Venturi ejector with 4-8 nozzles
  • All parts in contact with the product are made of polished AISI 304 stainless steel with FDA-certified food-grade seals (External satin finish/Internal polishing)
  • Cylindrical body: Ø420mm with a 20l load capacity (adjustable) - Ø280mm with an 8l load capacity
  • Product transport capacity up to 1700kg/h (distance considered 5m)
DOWNLOAD CASE STUDY
Desiccant packaging in the chemical industry with pneumatic conveyor

ADVANTAGES & BENEFITS

  • Maximum customisation of loading and unloading times, settable via the pneumatic panel.
  • Simple installation, commissioning and use.
  • No product waste or environmental contamination.
  • Fully automated production process with consequent production optimisation.
  • Reduction of space required in the production department.

PRODUCTS

Pneumatic dense phase pneumatic conveyor tech280

Dense phase pneumatic conveyor equipped with a multi-nozzle Venturi pump, CE and FDA certified system and ATEX Zone 22 or Zone 21 certifiable, ...

Find out more

Electric dilute phase pneumatic conveyor tech280

Dilute phase pneumatic conveyor, equipped with a side channel electric blower and a three-phase motor, CE and FDA certified system and ATEX Zone 22 ...

Find out more

Pneumatic dense phase pneumatic conveyor tech420

Dense phase pneumatic conveyor equipped with a multi-nozzle Venturi pump, CE and FDA certified system and ATEX Zone 22 or Zone 21 certifiable, ...

Find out more
